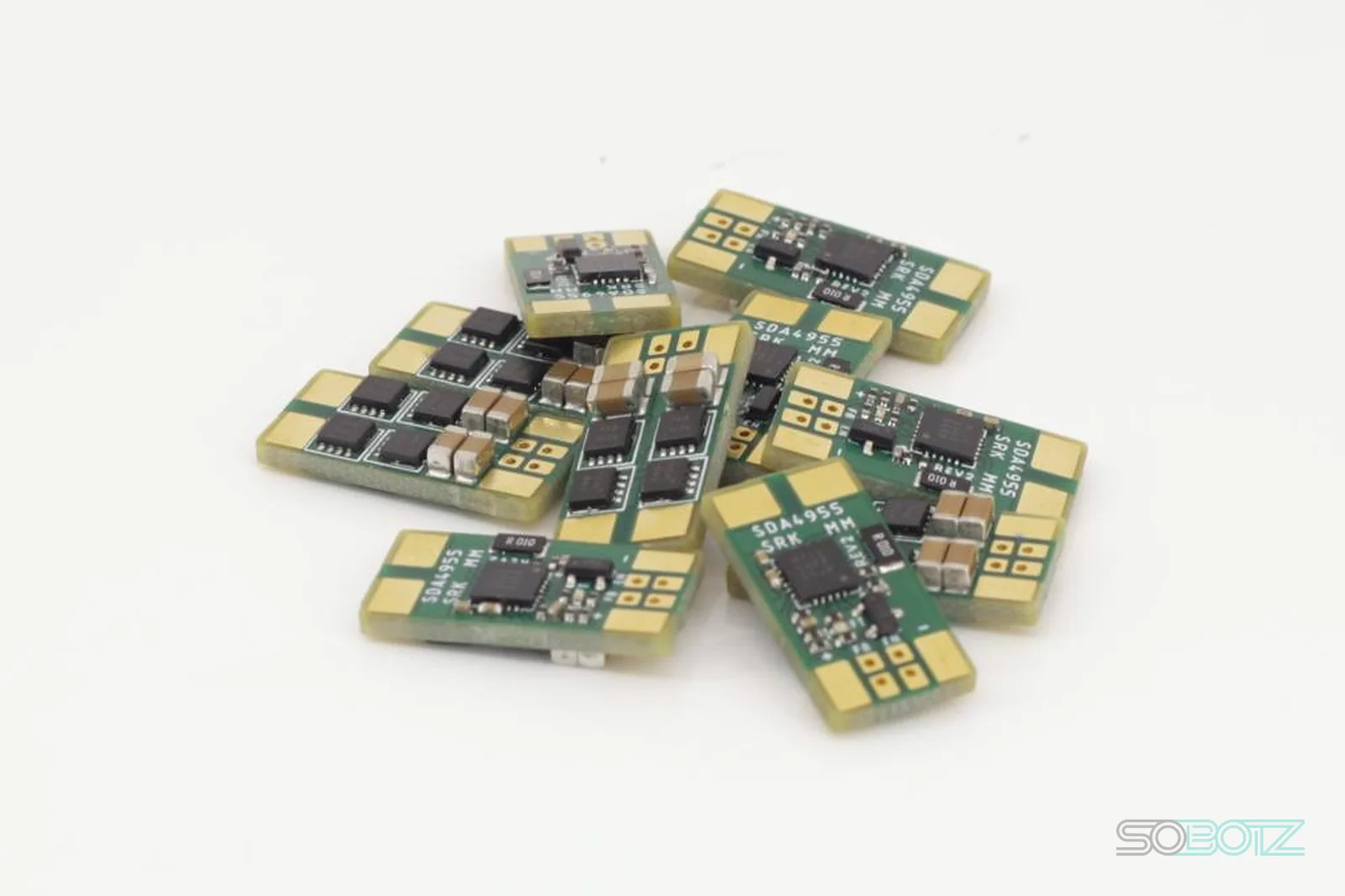

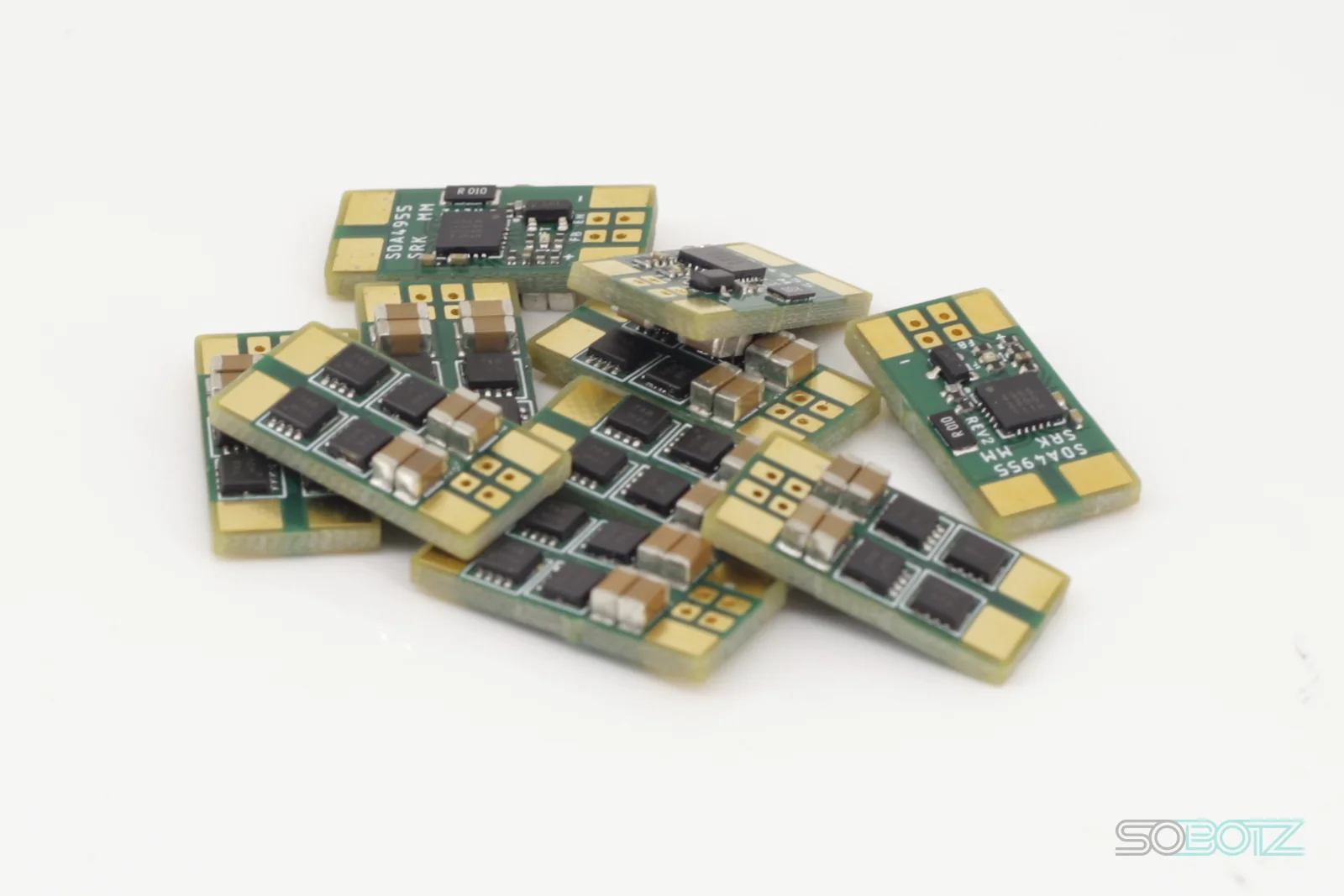

Minduino M25A Brushed ESC

We developed a powerful and small brushed ESC for robots with MCUs.

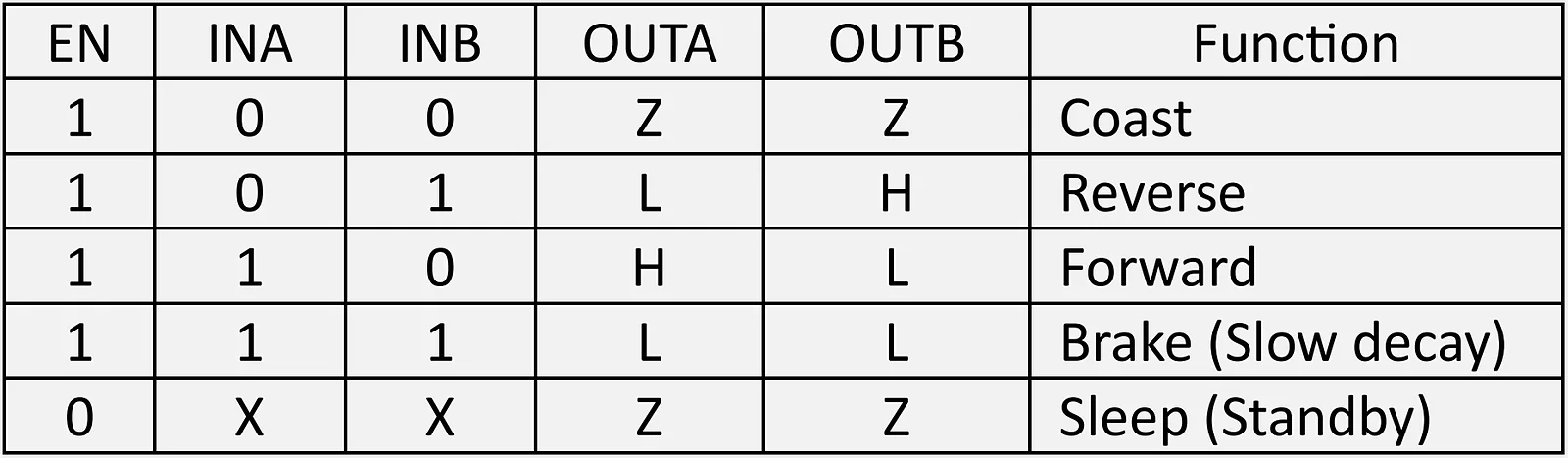

This ESC features current feedback, current limiting, small size and is able to handle peaks up to 168A (for <10us). It requires two PWM signals for controlling the speed and direction so it's not compatible out of the box with PWM receivers as it's more fit to use with microcontrollers. Control logic:

Specification:
Weight: 1.1g
Dimensions: 20x10x4.3mm
Max voltage: 30V
Min voltage: 6V
Current limit: 25A
Peak current: 168A (<10us) Package includes: 1pcs ESC Datasheet: MinduinoM25A

Eagle library: Github

CAD Model: GrabCAD
