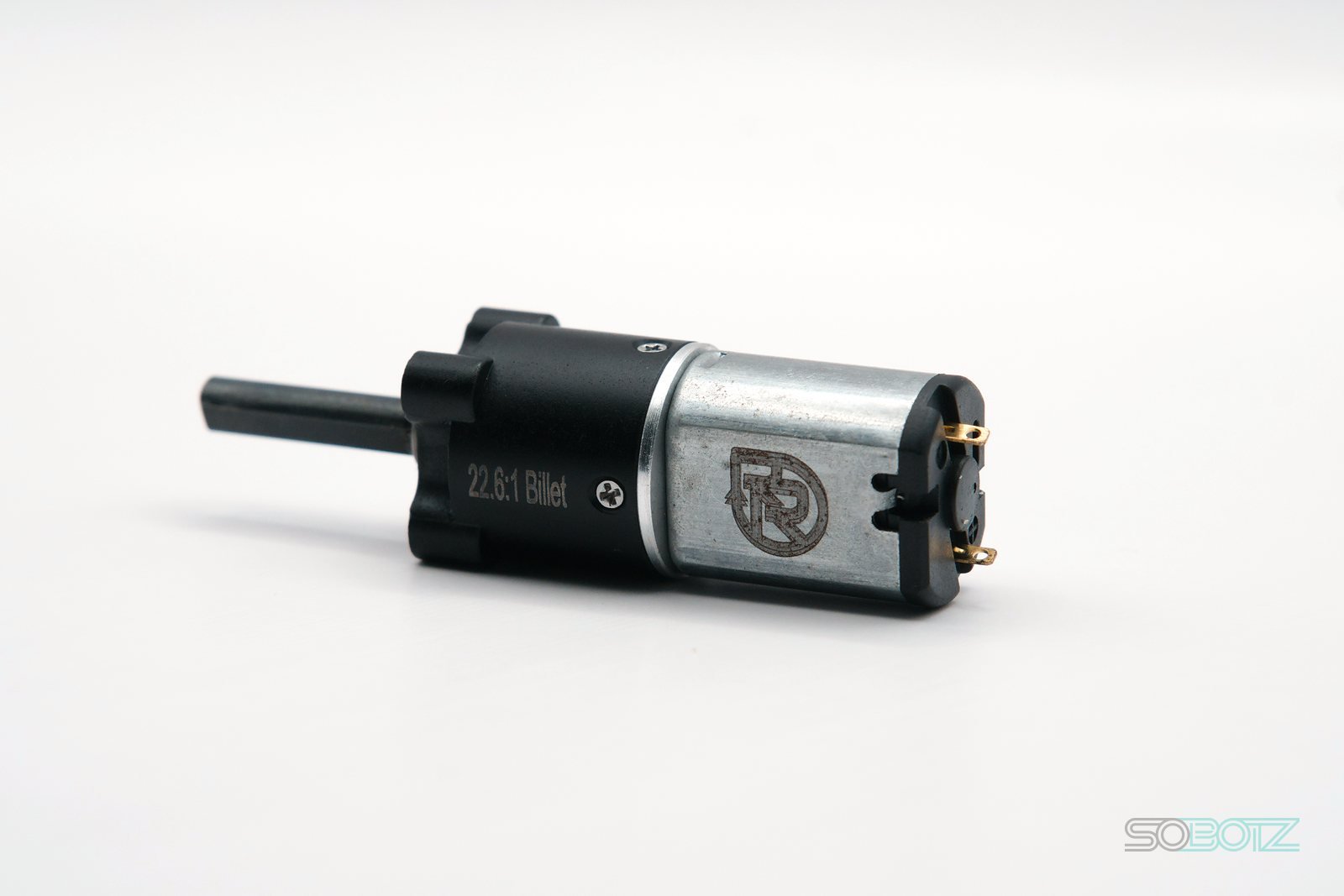

Mini Pro Brushed - SoBotz photo 1 of 3

Mini Pro Brushed – Antweight planetary gearmotor

29,00 €

Tired of bushings failing on your brushed drive motors? Tired of fiddling with super short M2 screws? This upgraded antweight drive motor has a custom tooled outer casing specifically to remove failure modes of the repeat mini brushed motors. Gone are the 3mm shafts bending. No longer will a bushing failing lock up your drive. Rest easily knowing that too long mounting screws won’t kill your motor.

In stock

Add extras
Dominion Dual Brushed Drive ESC - SoBotz photo 3 of 4 Dominion Dual Brushed Drive ESC 31,00 €
Categories: , Brand:

Description

  • 29.7g
  • Four lobed mounting pattern on the face makes for easy clamp mounting
  • Dual ball bearings supporting the output shaft
  • 4mm hardened steel billet output shaft
  • 4 final stage planet gears (vs the standard 3)
  • Machined planet gears for added durability
  • 4x M2 tapped hole on a 14mm circle for mounting
  • Custom wound 030 brushed motor
  • 2-4s lipo rated voltage
  • 16mm diameter, 22.6:1 all metal planetary gearbox

Find the 3D model HERE

Performance

  • 12V input (3S) – 1220rpm free speed – 2A stall current – 1187 g.cm stall torque – 3.72W max power output
  • 7.4V input (2S) – 752rpm
  • 14.8v input (4S) – 1504rpm

Additional information

Weight0,03 kg
Dimensions6 × 3 × 3 cm
