Description
- Custom wound 2006 brushless motor
- 1900kv – 2-6S voltage
- 2500kv – 2-4S voltage
- 24mm, 27:1 custom designed all metal planetary gearbox
- 6mm “D” extra long output shaft (cut to the length that you need to save weight)
- Custom billet 4130 final planet carrier and output shaft
- Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
- 64.5g weight
- Custom square M3 facemount hole pattern (9mm apart, 22mm hole circle (~9x20mm rectangle))

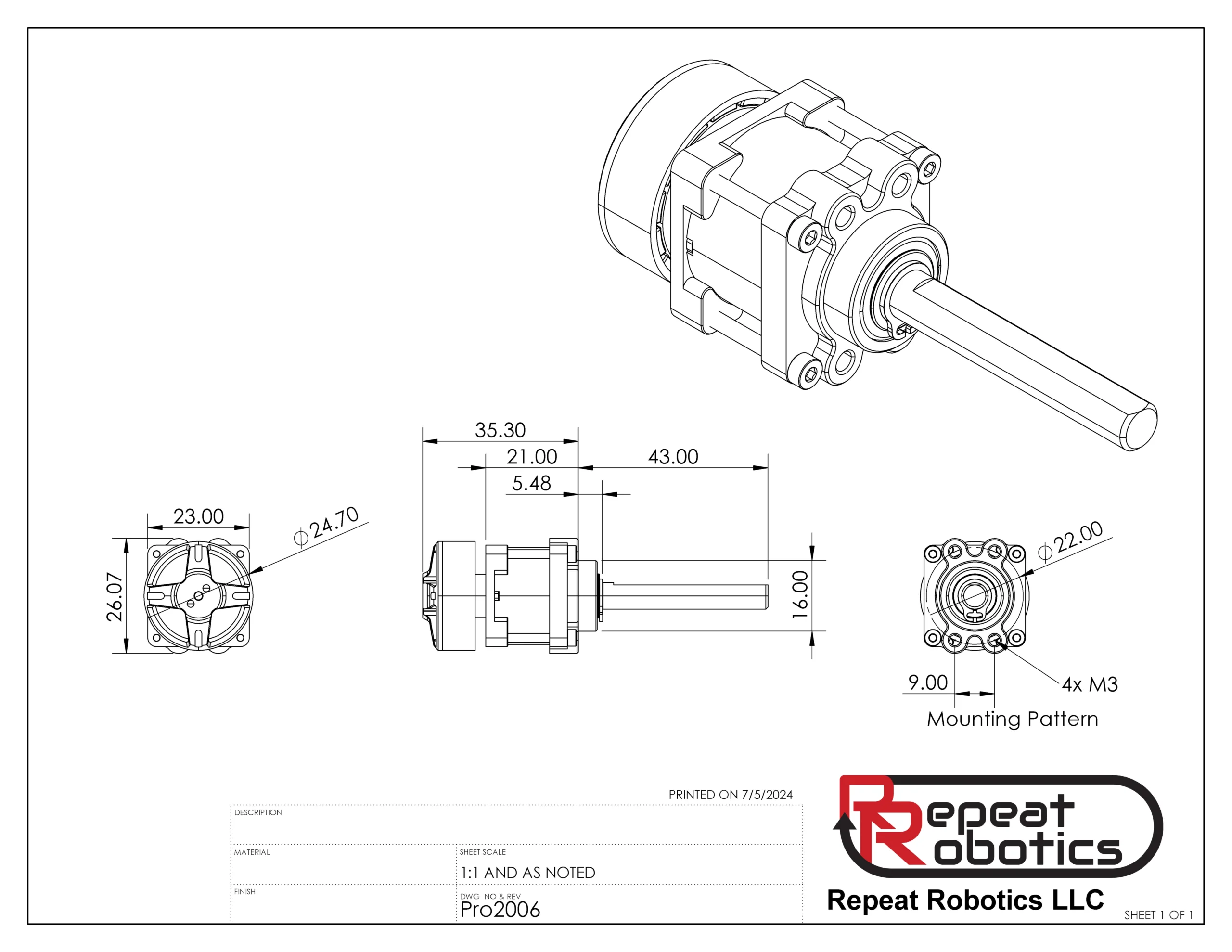

CAD model:
Re-greasing is recommended for high voltage usage and improved performance. Replacing the grease with a thinner grease or oil will reduce load and heating.
