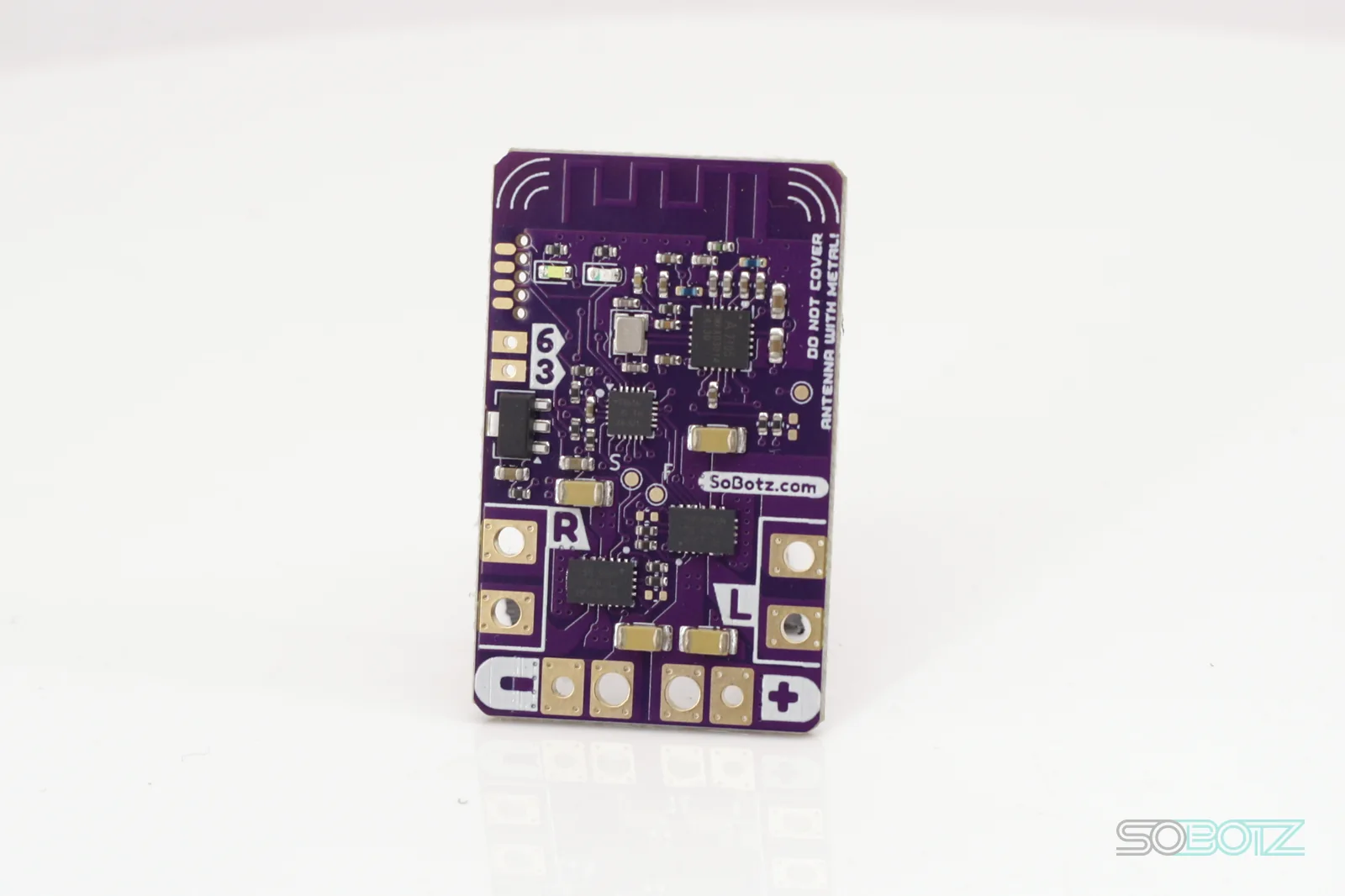

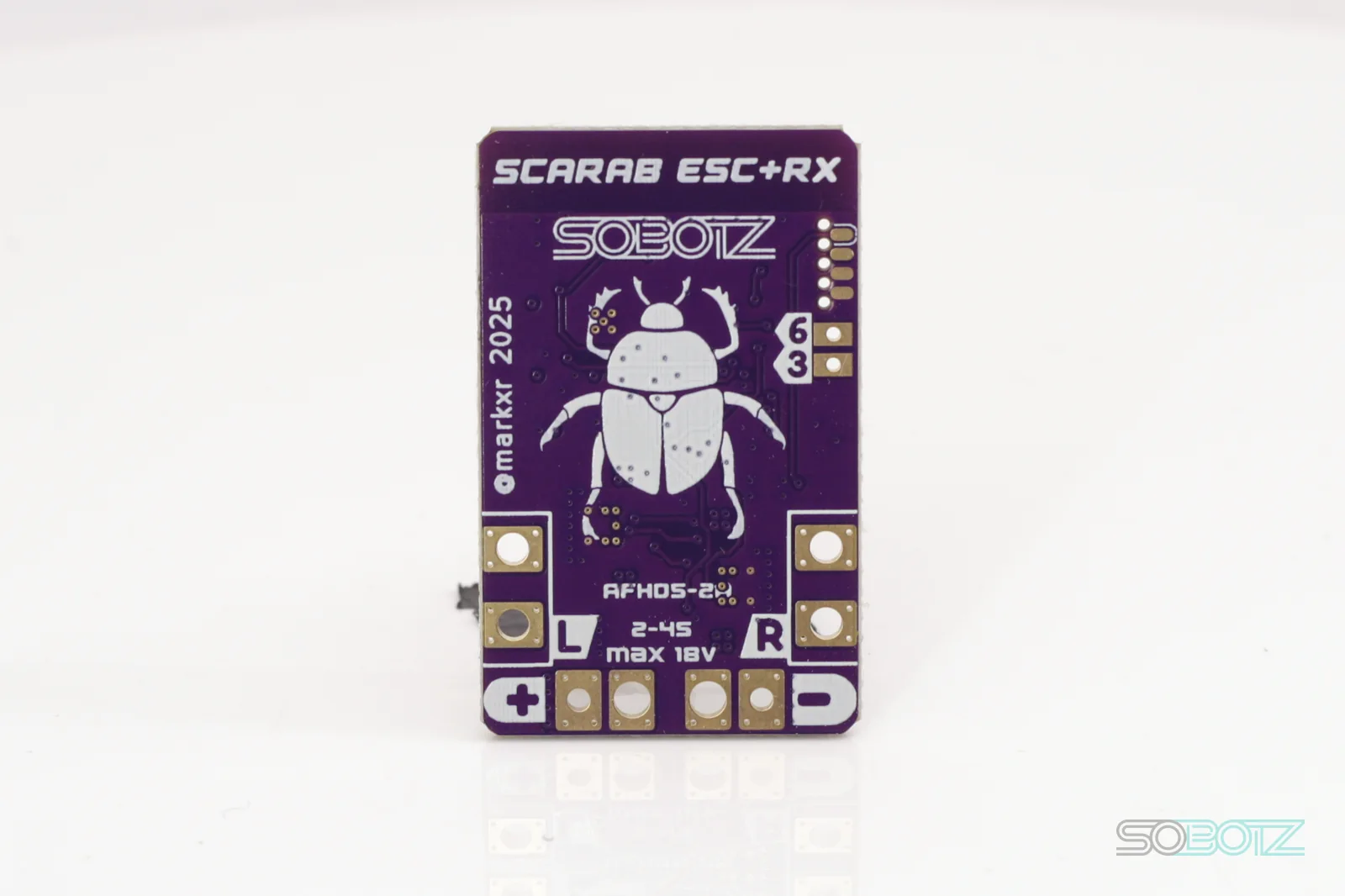

Scarab Antweight Robot Brushed 2x10A ESC

Description
Scarab is a powerful and compact dual-channel brushed ESC built for small combat robots and mobile platforms that need robust, high-current motor control in a tiny footprint. With support for 2S to 4S LiPo and up to 10A peak per channel, Scarab is ideal for bigger bots using stronger motors. Designed by MarkR42, GitHub

Specifications:

• Input Voltage: 7.4V – 18V (2S – 4S LiPo)
• Built-in AFHDS 2A receiver (FlySky, FlSky, Turnigy) – saves space & weight
• Motor Channels: 2x 10A peak, 5A continous. Current is limited, so if the drivers are overloaded or overheating they limit the output power.
• Compact Form Factor: Space-saving board design for tight builds
• Safety: Built-in failsafe – immediately stops motors on signal loss
• Dimensions: 40 x 25 x 3,4 mm
• Weight: 4g
• Soldering-Friendly: ENIG (gold) finish with large pads and through-holes for easy wiring

Key Features for Builders:

• Mixing & Braking: Built-in mixing; braking improves control
• Telemetry support sends battery voltage and link quality data to the transmitter.
• Servo stretcher mode extends servo travel beyond standard limits.
• Low voltage cutoff (2.8V per cell) prevents LiPo over-discharge.

Whether you’re building a pushing powerhouse or a precise control bot, Scarab delivers raw current and solid performance for dual brushed motor control in a streamlined form.

Simple Setup and Configuration

Scarab just like the Malenki automatically enters bind mode on first power-up and can be configured via Channel 5, allowing easy adjustments like inverting channels, enabling mixing, and adjusting braking.

How to bind: bit.ly/scarab_bind
Full documentation: bit.ly/scarab_docs
Software update: sobotz.com/en/programing-malenki/
CAD File: GrabCAD
