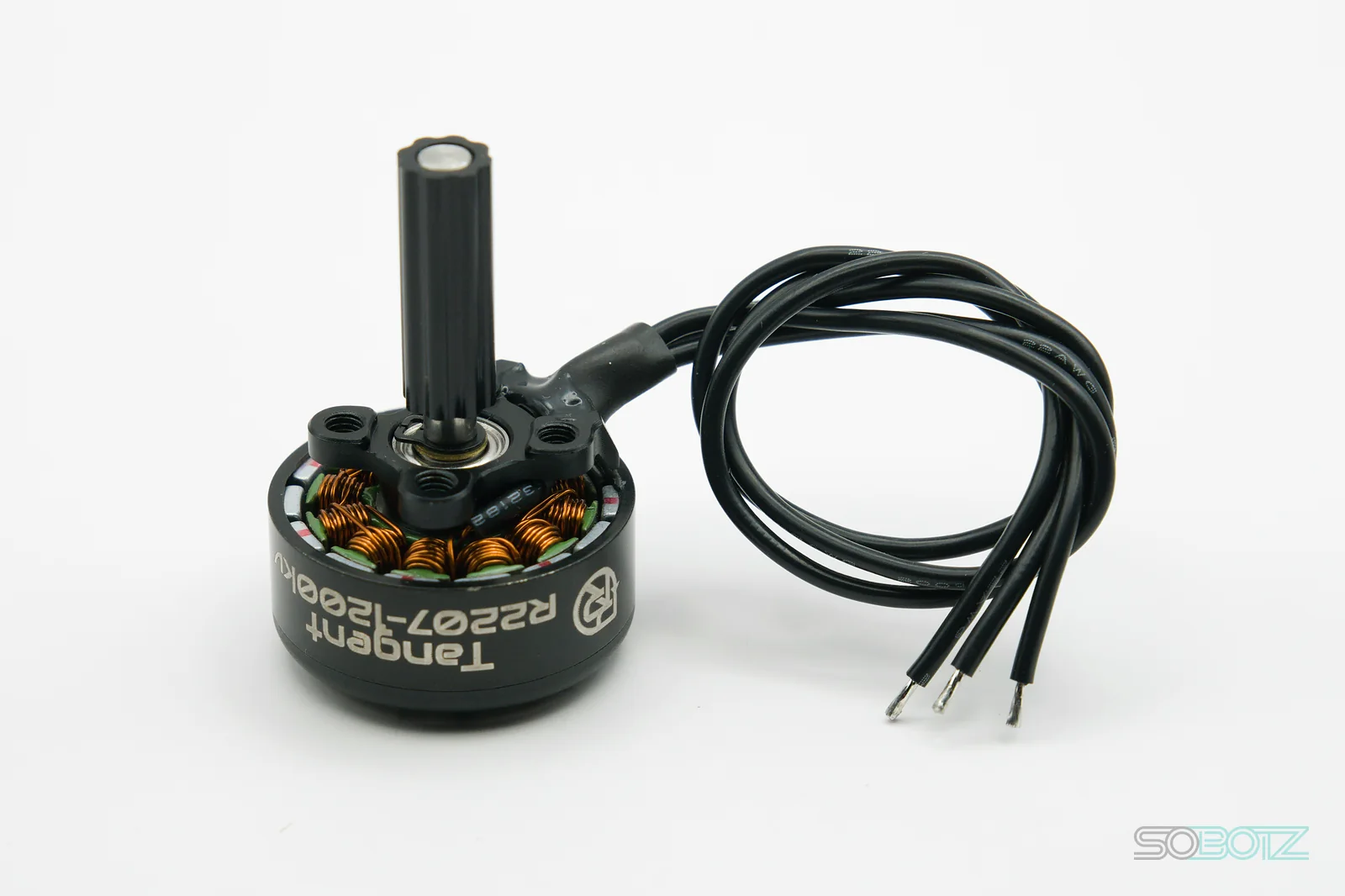

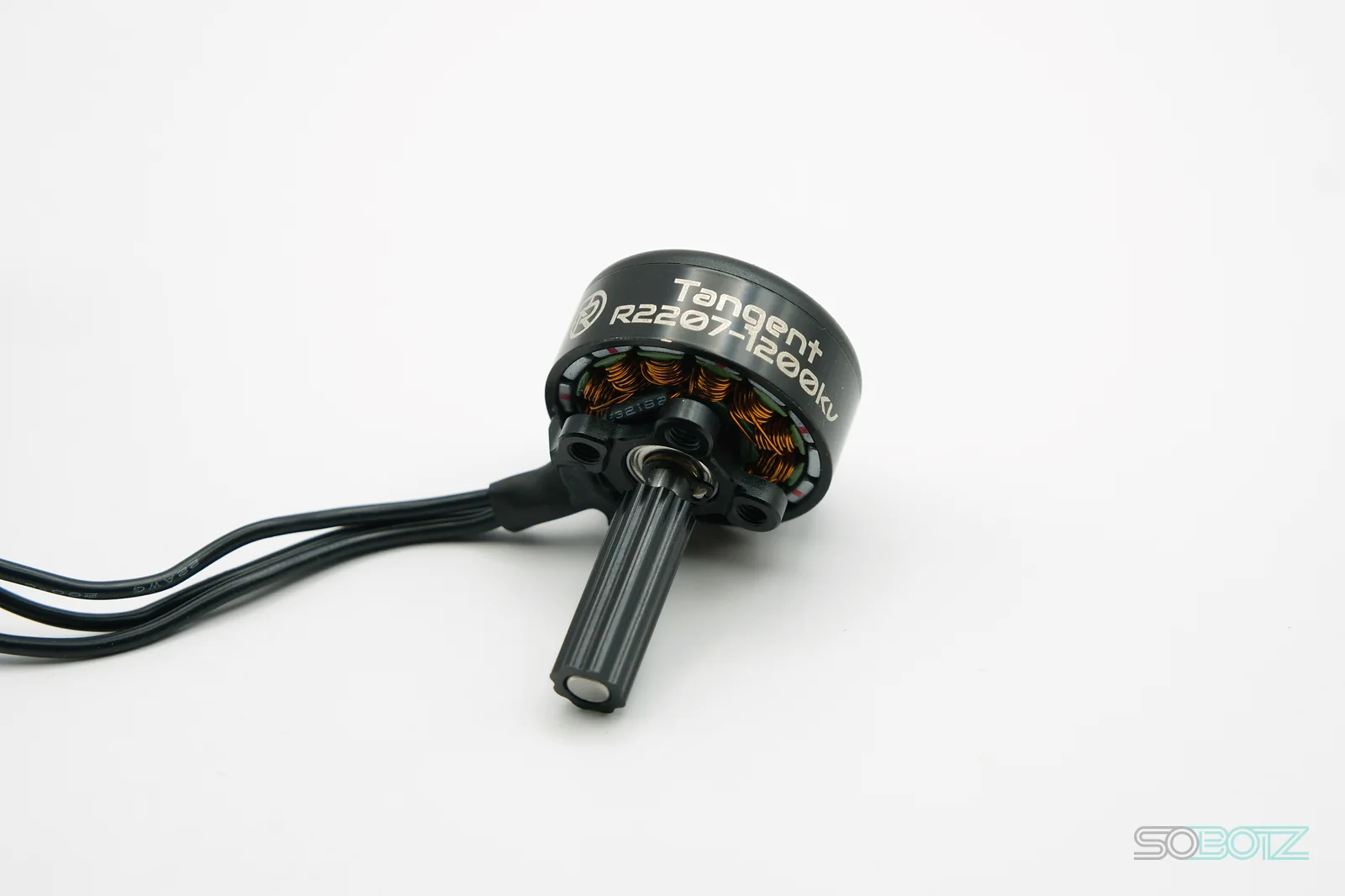

Tangent Drive 2207 – Beetleweight drive motor

Description

The antweight tangent motor can be found here:

Features:

• UPDATE (7/7/25) – 1200kv
• UPDATE (3/3/25) – Shaft is now 10mm longer
• UPDATE (3/3/25) – Motor construction is changed to prevent the motor can from coming off
• 2-6S voltage
• Comes with 7mm diameter knurled tangent drive shaft
• Suggested 0.8mm to 1.2mm interference (depending on wheel design)
• Weight
  • 36.1g with full length wires
  • 34.1g with shortened wires

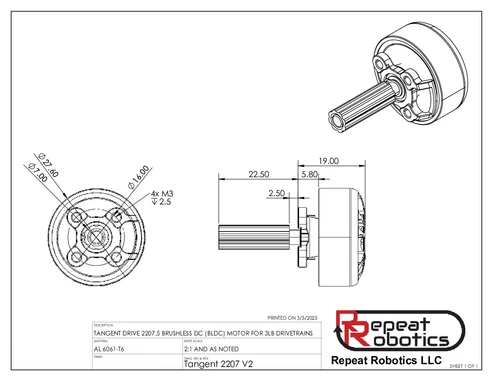

Find the 3D HERE

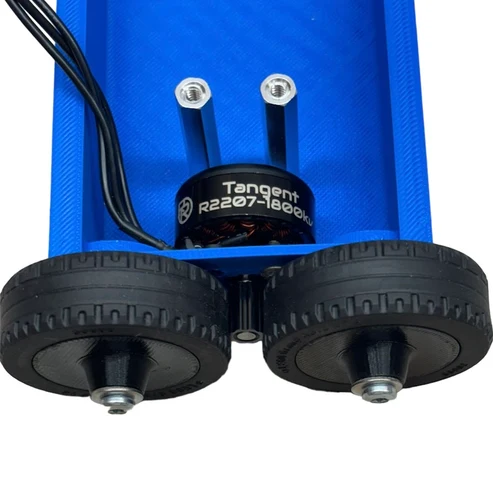

Find an example use case here: https://grabcad.com/library/repeat-tangent-drive-2207-1

Make sure to test out the chosen interference amount with your specific chassis and wheel designs. Too little interference and the shaft slips on the wheels before they slip on the ground. Too much and you’ll just be loading your motors too much causing them to burn out eventually
