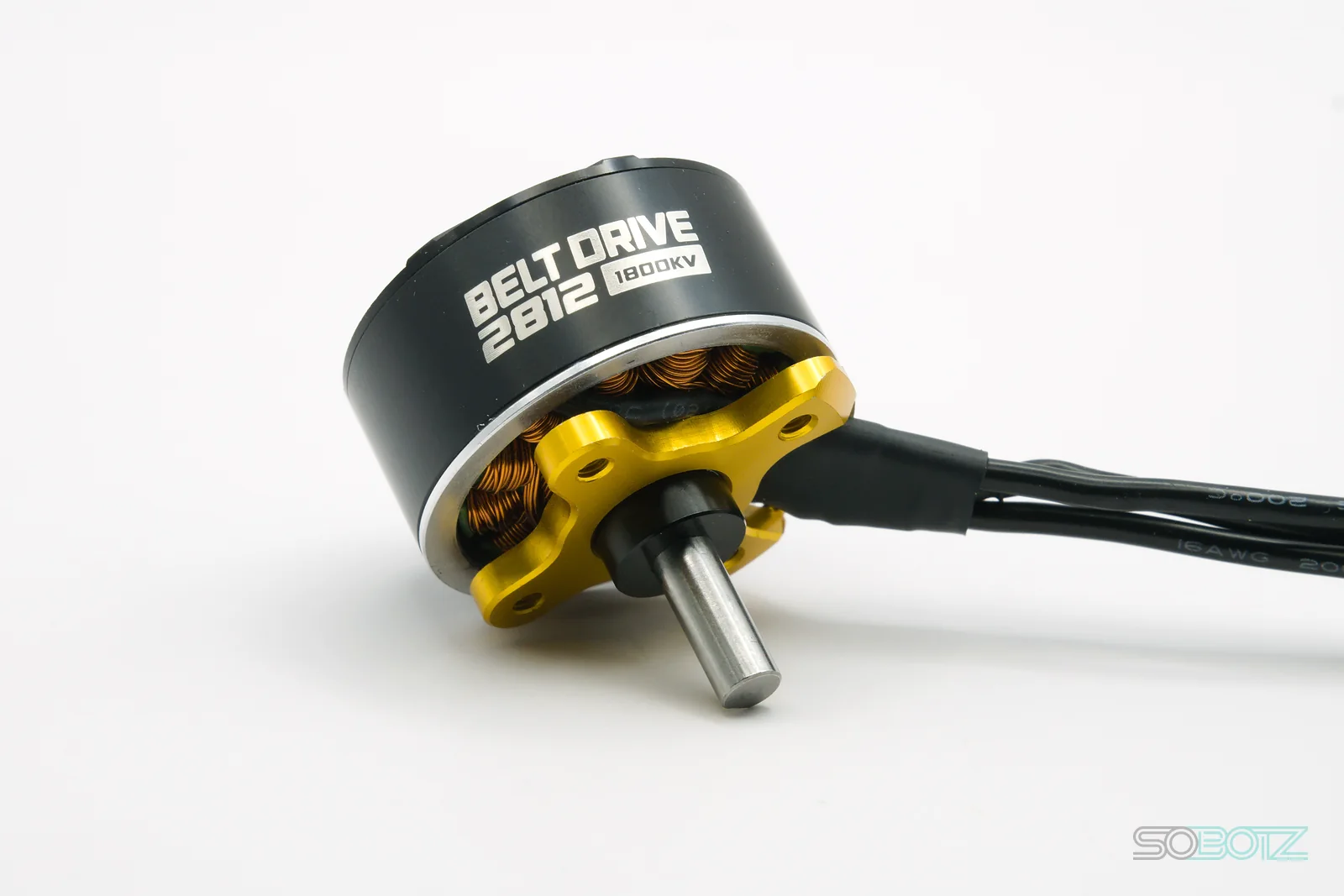

Description
- 24.3mm height x 35mm diameter
- 85g weight with full wires
- 2812 size stator

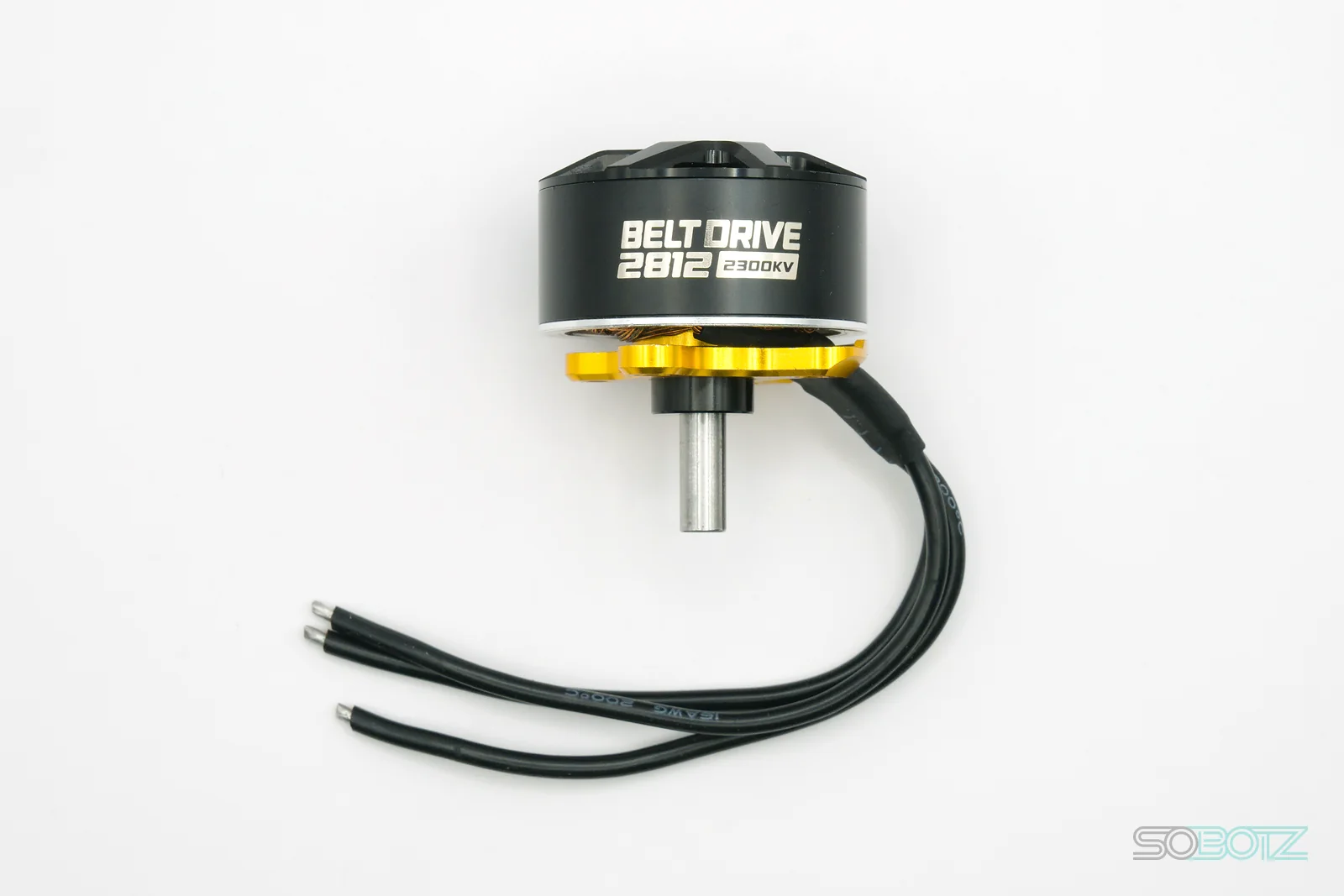

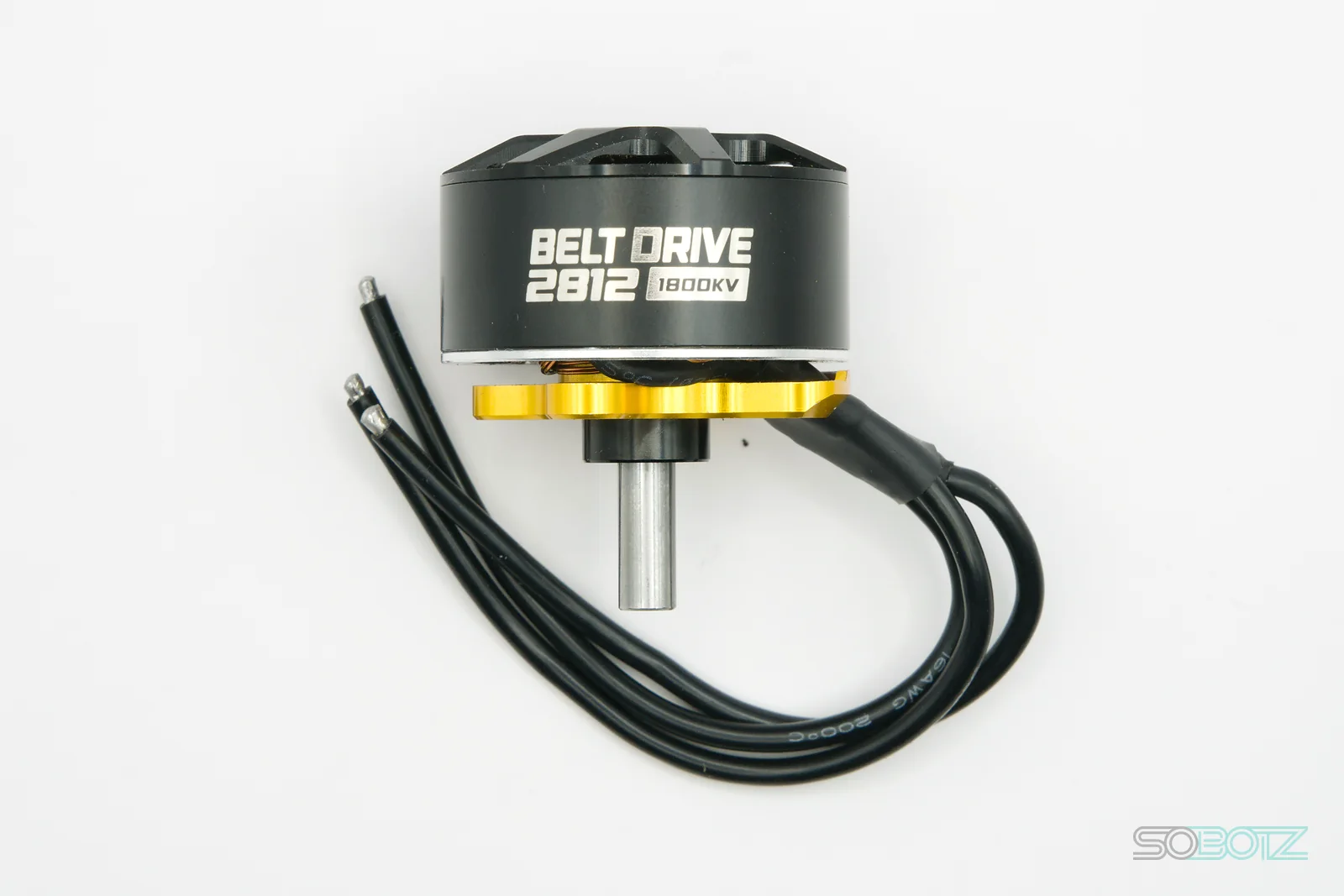

- Available in 1800, or 2300kv
- 1800 – 2-6S rated
- 2300 – 2-5S rated

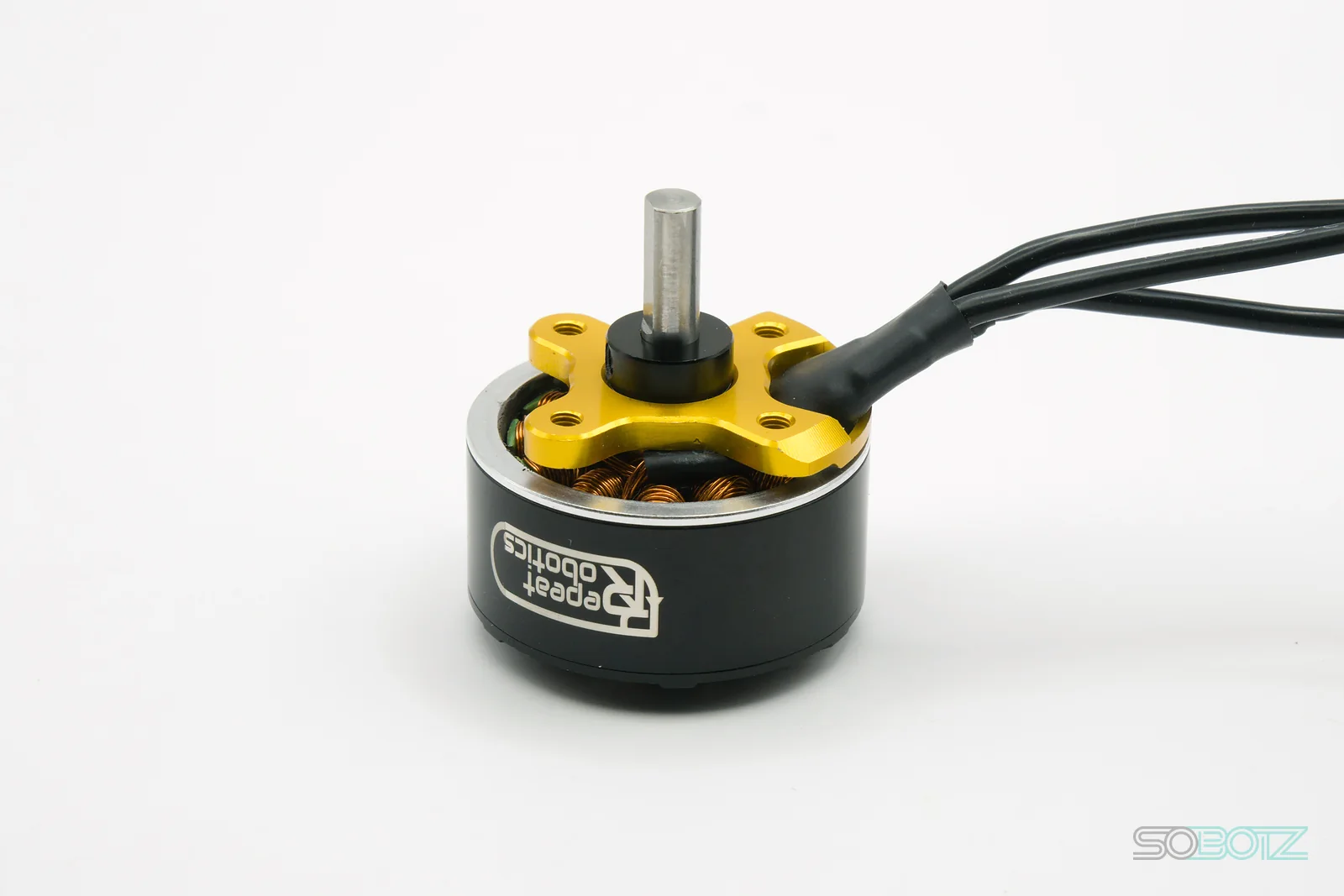

- Square 25x25mm M3 mounting pattern
- 5mm stainless steel shaft
- Flanged shaft to ensure motor can is held on
- Double caged magnets to prevent cracking
- Shaft retained by a custom T6 drive shaft collar on a separate shaft flat
Designed for:
- Belt drive from the shaft
- Inverted timing belt drive on the can
- 3D printed pulleys on the can
- Mates directly to repeat magnum gearboxes for a lightweight 12lber drive option loosen the shaft collar before installing pinion)
Find 3D model HERE
Motor Performance:
All tests were spinning a used repeat beater bar with the 19:30 MB v-belt system, and a stock Vortex 80A esc and a 4S lipo. We will work to get more test data at different voltages with different standard ratios as we have time.
- 1800kv – 142mph@183W, 953W peak
- 2300kv – 171mph@262W, 1247W peak
